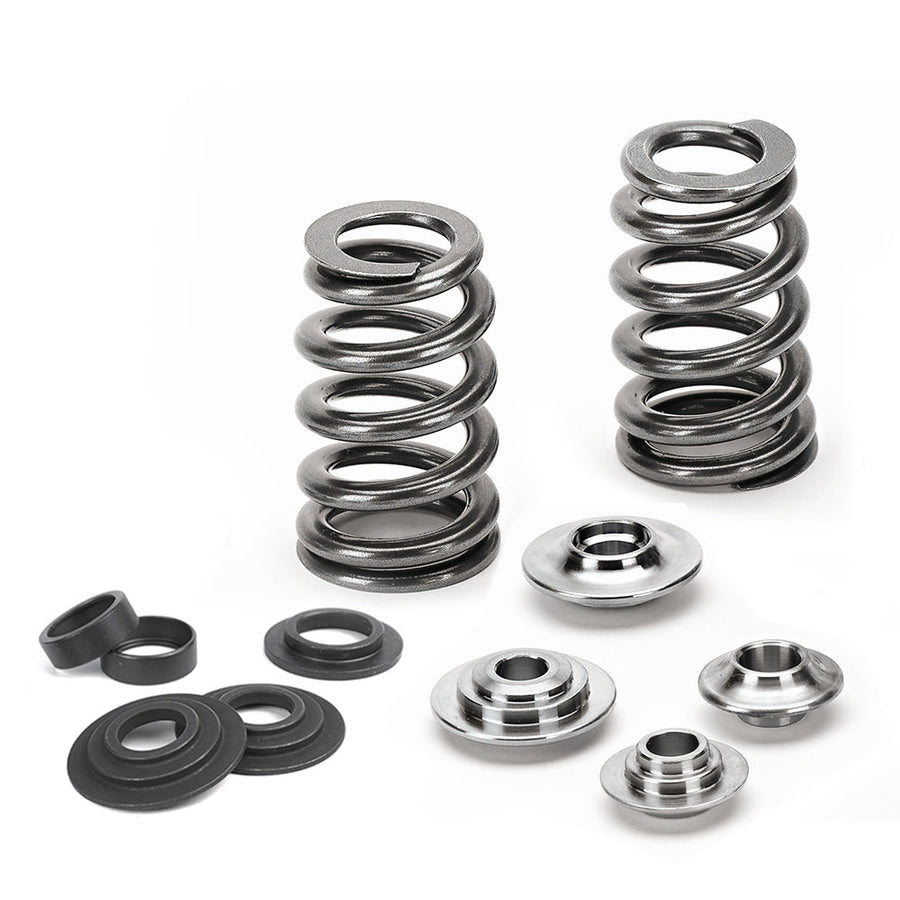

Beehive Spring Kit w/ Titanium Retainers – BMW | S54B32

High-performance beehive valve spring kit with titanium retainers for BMW | S54B32, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Beehive Valve Spring
Seat Pressure	76lbs @ 36.00mm
Retainer Material	Titanium

Specs
Outer Spring Od	28mm
Outer Spring Id	18.80mm
Inner Spring Od	24.20mm
Inner Spring Id	14.50mm
Seat Pressure	76lbs @ 36.00mm
Open Pressure	204lbs @ 10.00mm
Max Lift	14mm
Coil Bind	22.80mm
Safe Rpm Limit	8000
Retainer	ret-bm2521/t1-be
Retainer Qty	24
Seat Locator	seat-bms54-be
Seat Locator Qty	24
Kit Spring	spr-hm1007be
Rate	12.80lbs/mm
Kit Spring Qty	24
