CP Carrillo

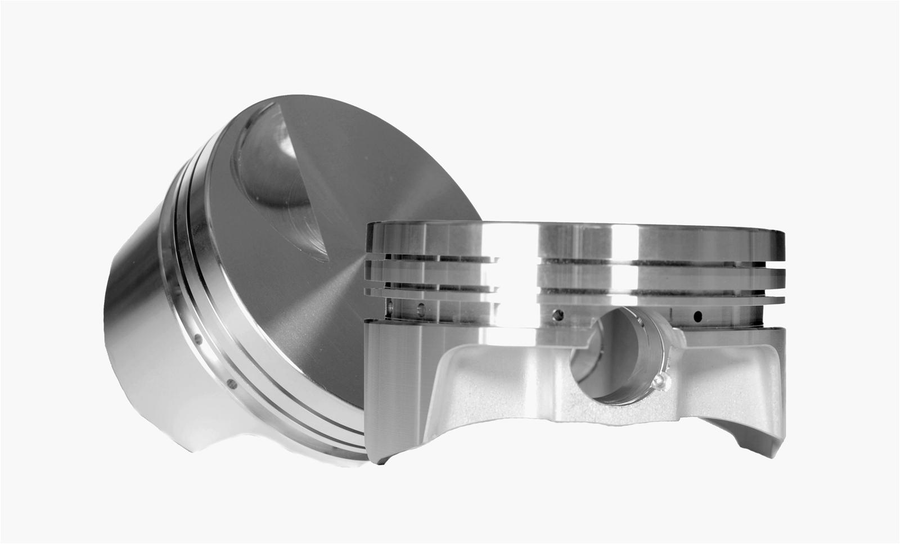

CP Pistons Piston and Ring Kit for Toyota 2JZ PVD Rings

SKU: CP SC7460PVD

$1,832.27
Free shipping on orders over $250
Authorized dealer — genuine parts

CP Pistons Toyota piston and ring kits aren't just any piston and ring kits. No, they're a blending of creativity, experience, and proven technology, making them the best pistons for your application. These high-strength forged aluminum pistons are CNC-machined and balanced to within +/- 1 gram, ensuring that all of your pistons are created equal. Toyota pistons have custom skirt cam and barrel designs to optimize maximum performance for your application. CP pistons have full radiused dome designs with deep valve reliefs, making them compatible with oversized valves and higher lift cams. With their high performance rings and accumulator grooves, lightweight pins, and double pin oilers, these are not your ordinary pistons--they're engineered for ultimate power in your sport compact.

This is a full kit for all cylinders.

 as of 09/18/2023 These are not including PVD rings !

Applications


Make:
TOYOTA
Beginning Year:
1993
Ending Year:
1998
Engine Type:
L6
Engine Family:
Toyota inline 6-cylinder
Engine Size:
3.0L/2997cc
Piston Rings Included:
Yes
Bore (in.):
3.406 in.
Bore (mm):
86.500mm
Stroke:
86.00mm
Rod Length:
142.000mm
Piston Style:
Dish, with four valve reliefs
Piston Material:
Forged aluminum
Compression Height (in.):
1.338 in.
Piston Head Volume (cc):
+14.30cc
Wrist Pin Style:
Press-fit or floating
Wrist Pin Retainers Included:
Yes
Wrist Pin Included:
Yes
Pin Diameter (in.):
0.866 in.
File Fit:
No
Gapless:
No
Top Ring Thickness:
1.2mm
Top Ring Material:
Steel
Second Ring Thickness:
1.5mm
Second Ring Material:
Cast iron
Oil Ring Thickness:
3.0mm
Remanufactured:
No
Notes:
Can be used in turbo, supercharger, or nitrous applications.
Pistons - Forged - Single2JZ-GTE
