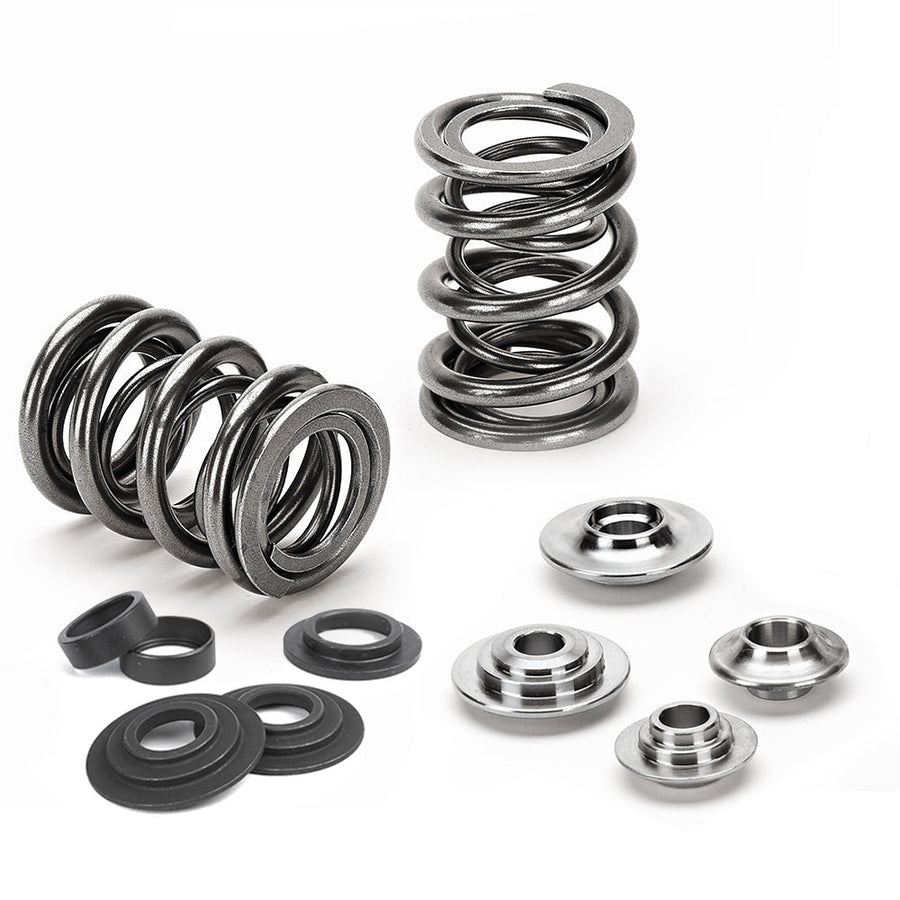

Dual Spring Kit w/ Titanium Retainers – Hyundai | G4KF

High-performance dual valve spring kit with titanium retainers for Hyundai | G4KF, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Dual Valve Spring
Seat Pressure	75lbs @ 34.50mm
Retainer Material	Titanium

Specs
Outer Spring Od	27.50mm
Outer Spring Id	20mm
Inner Spring Od	20mm
Inner Spring Id	15.20mm
Seat Pressure	75lbs @ 34.50mm
Open Pressure	170lbs @ 10.00mm
Max Lift	14.50mm
Coil Bind	20mm
Safe Rpm Limit	8000
Retainer	ret-ts5.5/t1ex
Retainer Qty	16
Seat Locator	seat-m1015-1
Seat Locator Qty	16
Kit Spring	spr-hy1012d
Rate	9.60lbs/mm
Kit Spring Qty	16
