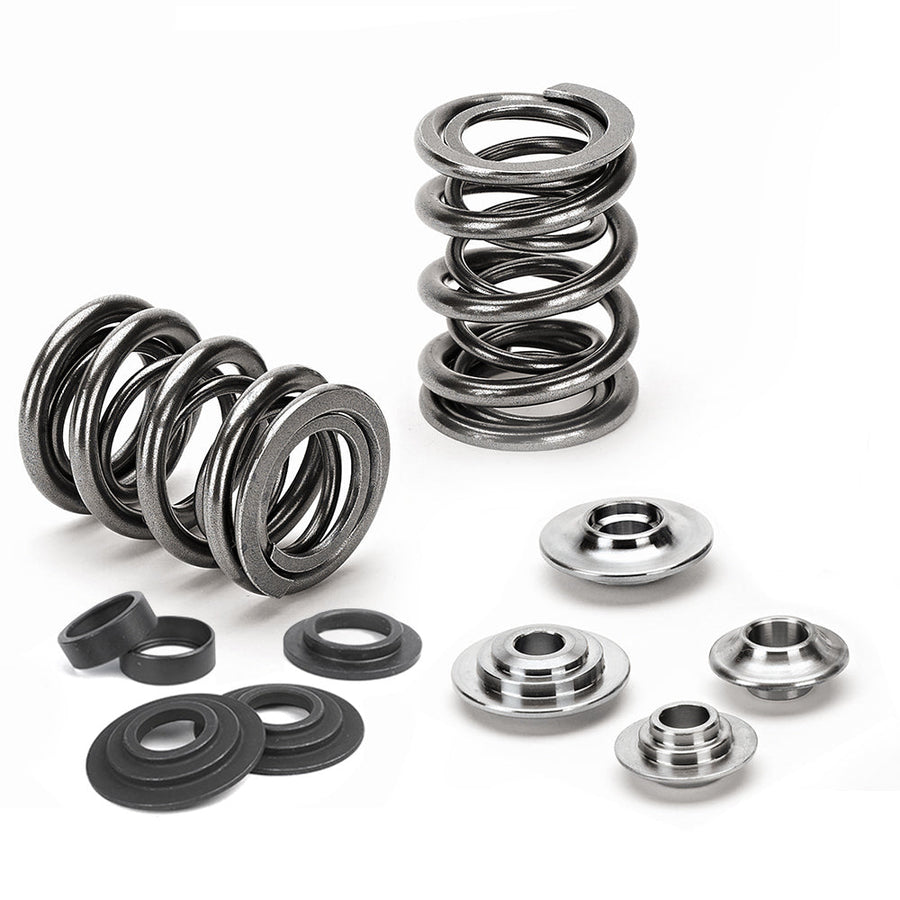

Dual Spring Kit w/ Titanium Retainers – Hyundai | Genesis 3.8L

High-performance dual valve spring kit with titanium retainers for Hyundai | Genesis 3.8L, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Dual Valve Spring
Seat Pressure	76lbs @ 34.30mm
Retainer Material	Titanium

Specs
Outer Spring Od	29.05mm
Outer Spring Id	21.85mm
Inner Spring Od	20.50mm
Inner Spring Id	15.50mm
Seat Pressure	76lbs @ 34.30mm
Open Pressure	184lbs @ 10.00mm
Max Lift	13mm
Coil Bind	19.50mm
Safe Rpm Limit	8000
Retainer	ret-k20a2/t2
Retainer Qty	16
Seat Locator	seat-gen/2
Seat Locator Qty	16
Kit Spring	spr-h1002d
Rate	10lbs/mm
Kit Spring Qty	16
