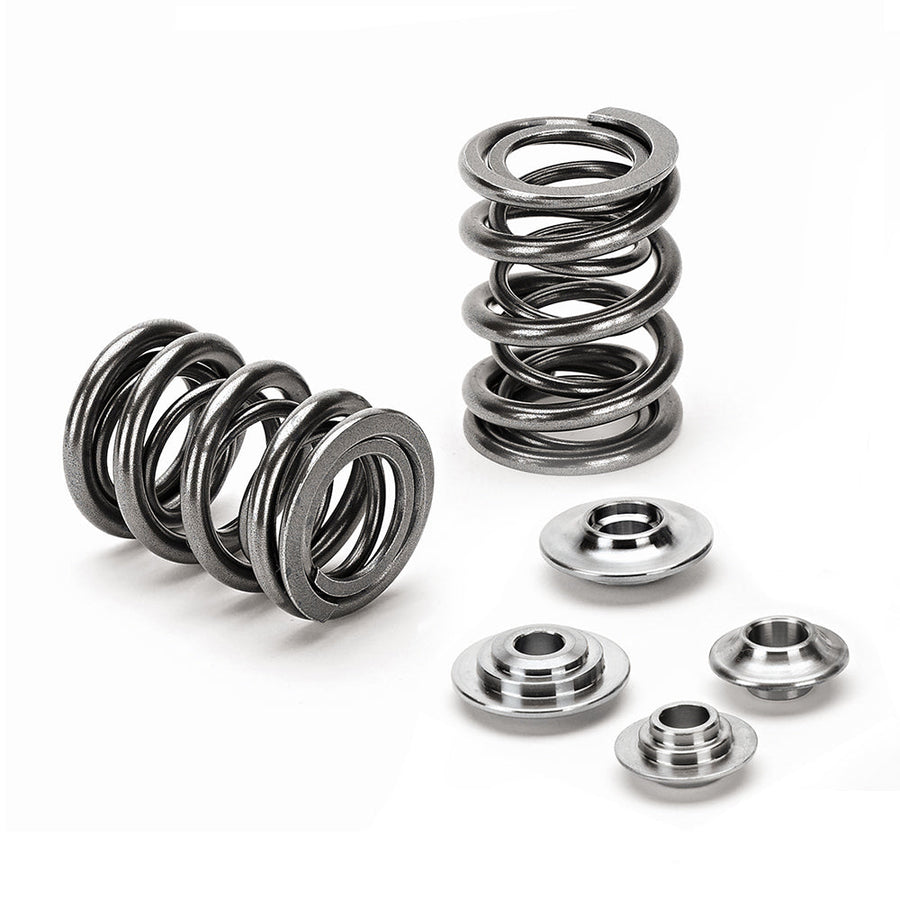

Dual Spring Kit w/ Titanium Retainers – Toyota | 2JZ-GTE DOHC

High-performance dual valve spring kit with titanium retainers for Toyota | 2JZ-GTE DOHC, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Dual Valve Spring
Seat Pressure	118lbs @ 33.60mm
Retainer Material	Titanium

Specs
Outer Spring Od	27.50mm
Outer Spring Id	20mm
Inner Spring Od	20mm
Inner Spring Id	14.20mm
Seat Pressure	118lbs @ 33.60mm
Open Pressure	277lbs @ 11.00mm
Max Lift	12.10mm
Coil Bind	20.70mm ; 19.50mm
Safe Rpm Limit	8000
Retainer	ret-ts60/t1-2
Retainer Qty	24
Seat Locator	use oem seat
Seat Locator Qty	24
Kit Spring	spr-ts1009
Rate	14.50lbs/mm
Kit Spring Qty	24
