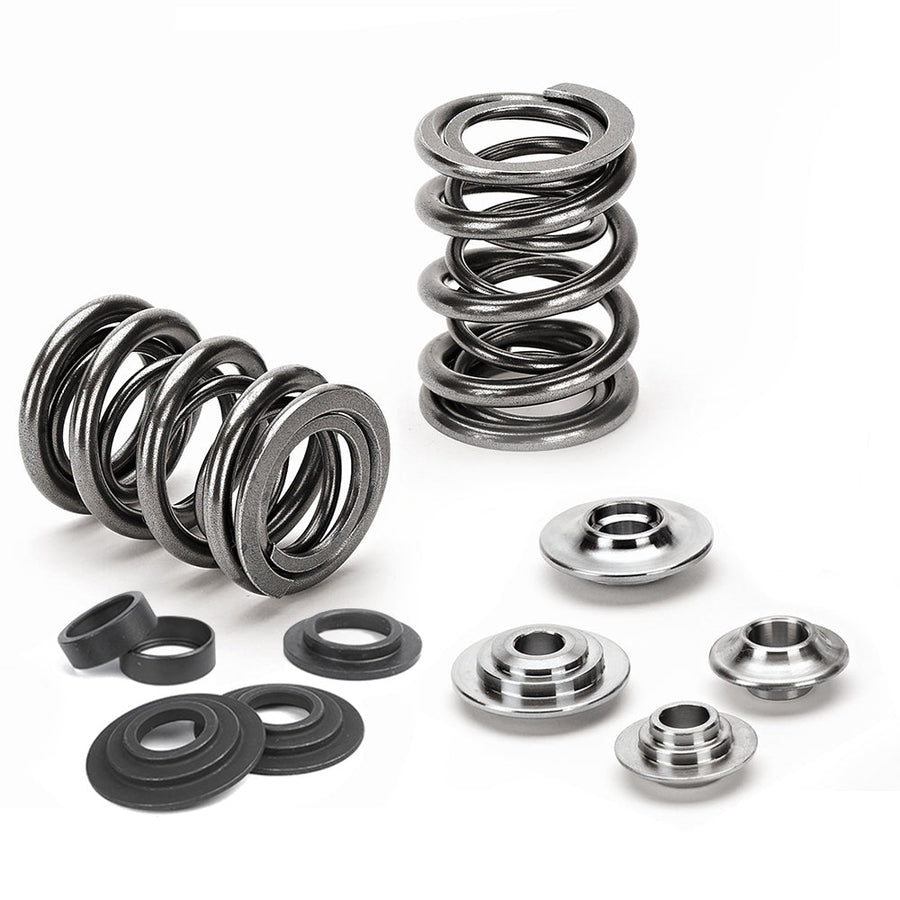

Dual Spring Kit w/ Titanium Retainers – Toyota | 3SGTE

High-performance dual valve spring kit with titanium retainers for Toyota | 3SGTE, improving valve control, high-RPM stability, and durability. Shim under bucket version

Attributes
Spring Type	Dual Valve Spring
Seat Pressure	77lbs @ 35.50mm
Retainer Material	Titanium

Specs
Outer Spring Od	27.50mm
Outer Spring Id	20mm
Inner Spring Od	20mm
Inner Spring Id	15.20mm
Seat Pressure	77lbs @ 35.50mm
Open Pressure	222lbs @ 12.00mm
Max Lift	14mm
Coil Bind	20.70mm
Safe Rpm Limit	8000
Retainer	ret-ts60/ma2r
Retainer Qty	16
Seat Locator	seat-ts1015-1
Seat Locator Qty	16
Kit Spring	spr-ts1015
Rate	12.10lbs/mm
Kit Spring Qty	16
