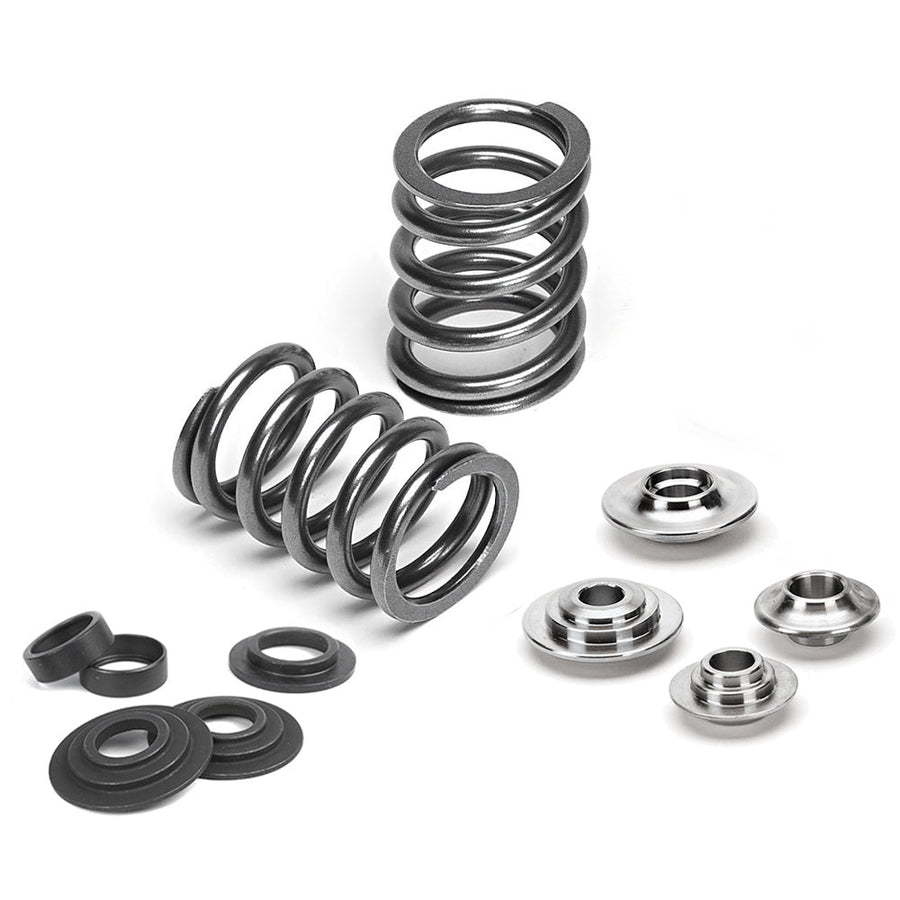

Single Spring Kit w/ Titanium Retainers and Spring Shims – Toyota | 4AGE 20V

High-performance single valve spring kit with titanium retainers for Toyota | 4AGE 20V, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Single Valve Spring
Seat Pressure	54lbs @ 36.60mm
Retainer Material	Titanium

Specs
Spring Shim Qty	20
Outer Spring Od	20.60mm
Outer Spring Id	14.40mm
Inner Spring Od	single
Inner Spring Id	single
Seat Pressure	54lbs @ 36.60mm
Open Pressure	123lbs @ 10.50mm
Max Lift	13.60mm
Coil Bind	23mm
Safe Rpm Limit	8000
Retainer	ret-tc50/t1
Retainer Qty	20
Seat Locator	use oem seat
Seat Locator Qty	20
Kit Spring	spr-a2095
Rate	6.70lbs/mm
Kit Spring Qty	20
Spring Shim	ss-3021
