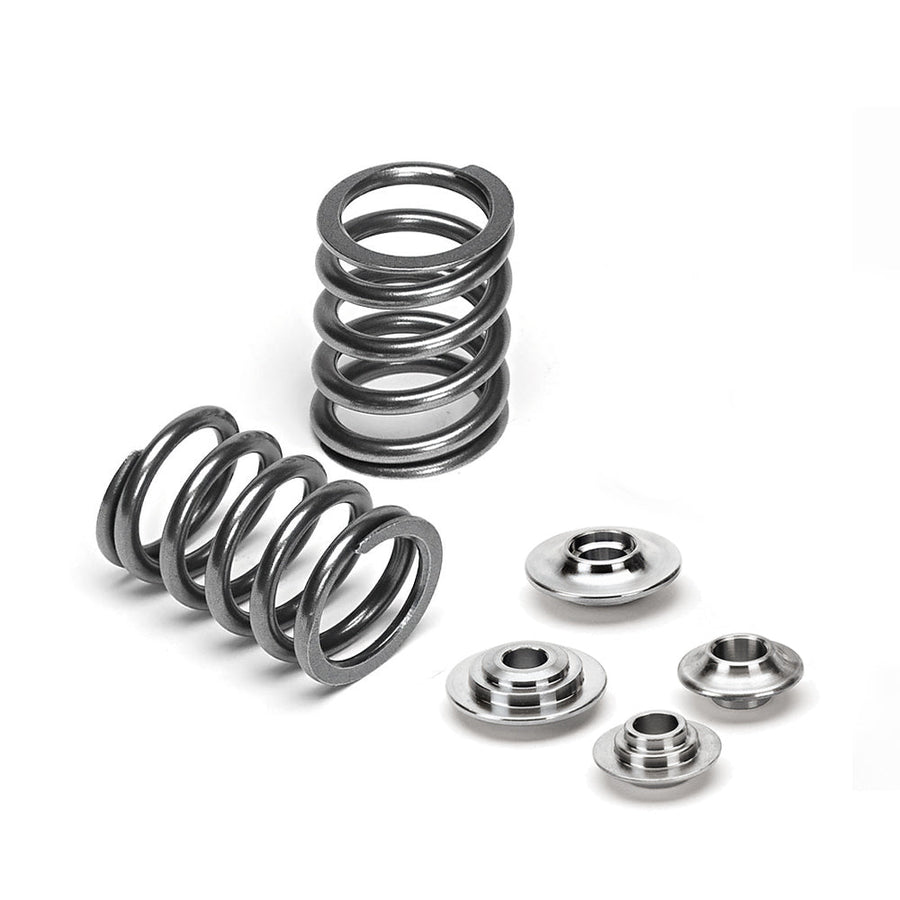

Single Spring Kit w/ Titanium Retainers – Toyota | 2JZ-GTE DOHC

High-performance single valve spring kit with titanium retainers for Toyota | 2JZ-GTE DOHC, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Single Valve Spring
Seat Pressure	60lbs @ 33.60mm
Retainer Material	Titanium

Specs
Outer Spring Od	27.50mm
Outer Spring Id	20mm
Inner Spring Od	single
Inner Spring Id	single
Seat Pressure	60lbs @ 33.60mm
Open Pressure	165lbs @ 11.00mm
Max Lift	12.90mm
Coil Bind	20.70mm
Safe Rpm Limit	8000
Retainer	ret-nvg1015/t1
Retainer Qty	24
Seat Locator	use oem seat
Seat Locator Qty	24
Kit Spring	spr-ts1015-si
Rate	9.60lbs/mm
Kit Spring Qty	24
