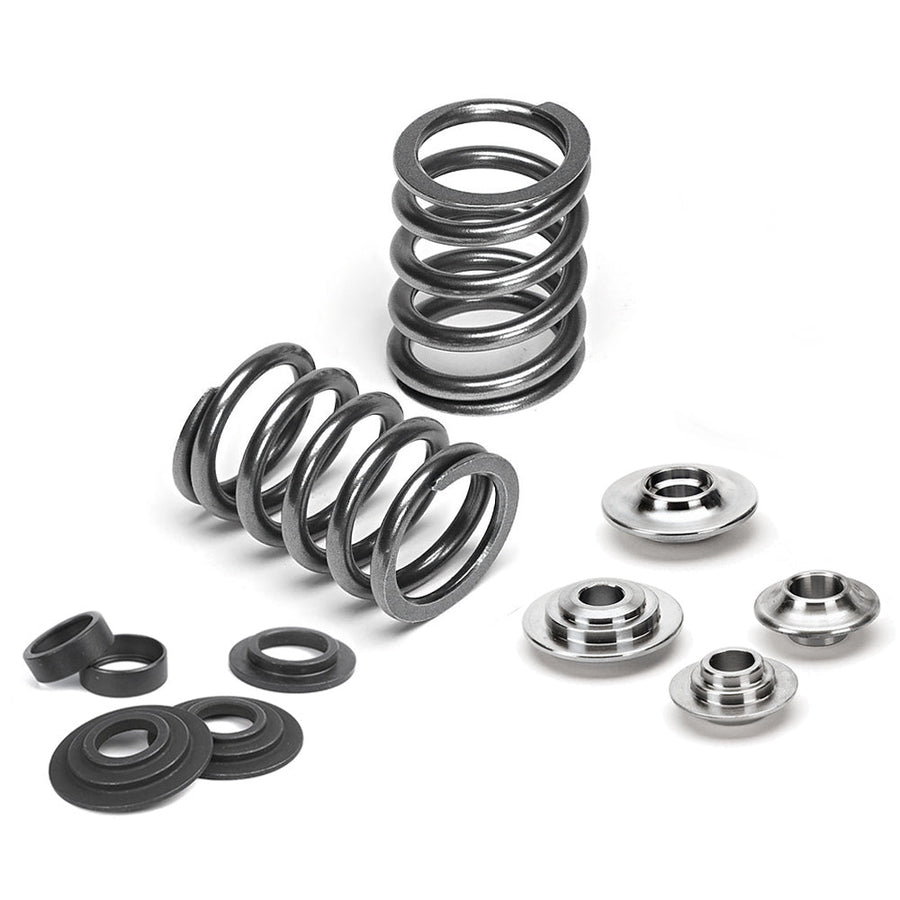

Single Spring Kit w/ Titanium Retainers – Toyota | 3SGTE ret-ts60/ma2

High-performance single valve spring kit with titanium retainers for Toyota | 3SGTE, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Single Valve Spring
Seat Pressure	59lbs @ 34.75mm
Retainer Material	Titanium

Specs
Spring Shim Qty	16
Outer Spring Od	27.50mm
Outer Spring Id	20mm
Inner Spring Od	single
Inner Spring Id	single
Seat Pressure	59lbs @ 34.75mm
Open Pressure	175lbs @ 12.00mm
Max Lift	13.25mm
Coil Bind	20.70mm
Safe Rpm Limit	8000
Retainer	ret-ts60/ma2
Retainer Qty	16
Seat Locator	use oem seat
Seat Locator Qty	16
Kit Spring	spr-ts1015-si
Rate	9.60lbs/mm
Kit Spring Qty	16
Spring Shim	ss-3025
