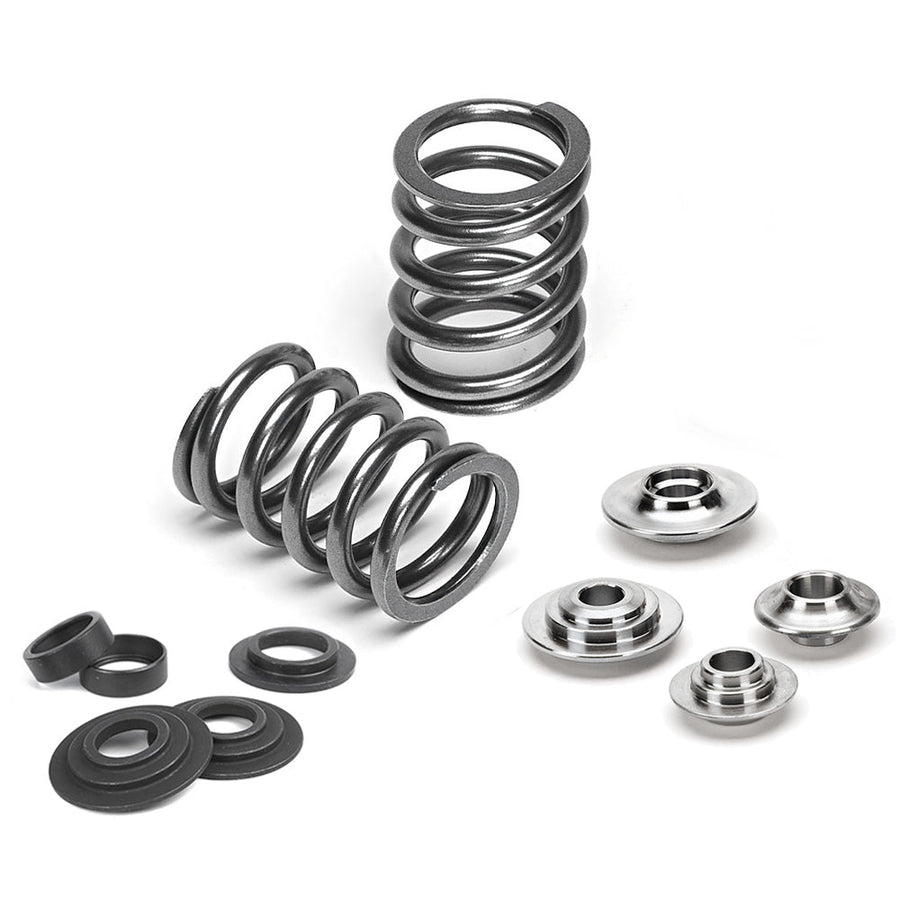

Single Spring Kit w/ Titanium Retainers – Toyota | 7MGTE

High-performance single valve spring kit with titanium retainers for Toyota | 7MGTE, improving valve control, high-RPM stability, and durability.

Attributes
Spring Type	Single Valve Spring
Seat Pressure	51lbs @ 36.00mm
Retainer Material	Titanium

Specs
Spring Shim Qty	24
Outer Spring Od	25mm
Outer Spring Id	18mm
Inner Spring Od	single
Inner Spring Id	single
Seat Pressure	51lbs @ 36.00mm
Open Pressure	131lbs @ 10.50mm
Max Lift	14.40mm
Coil Bind	21mm
Safe Rpm Limit	8000
Retainer	ret-2500/t1
Retainer Qty	24
Seat Locator	ss-3012
Seat Locator Qty	24
Kit Spring	spr-tc25s
Rate	7.60lbs/mm
Kit Spring Qty	24
Spring Shim	ss-3012
